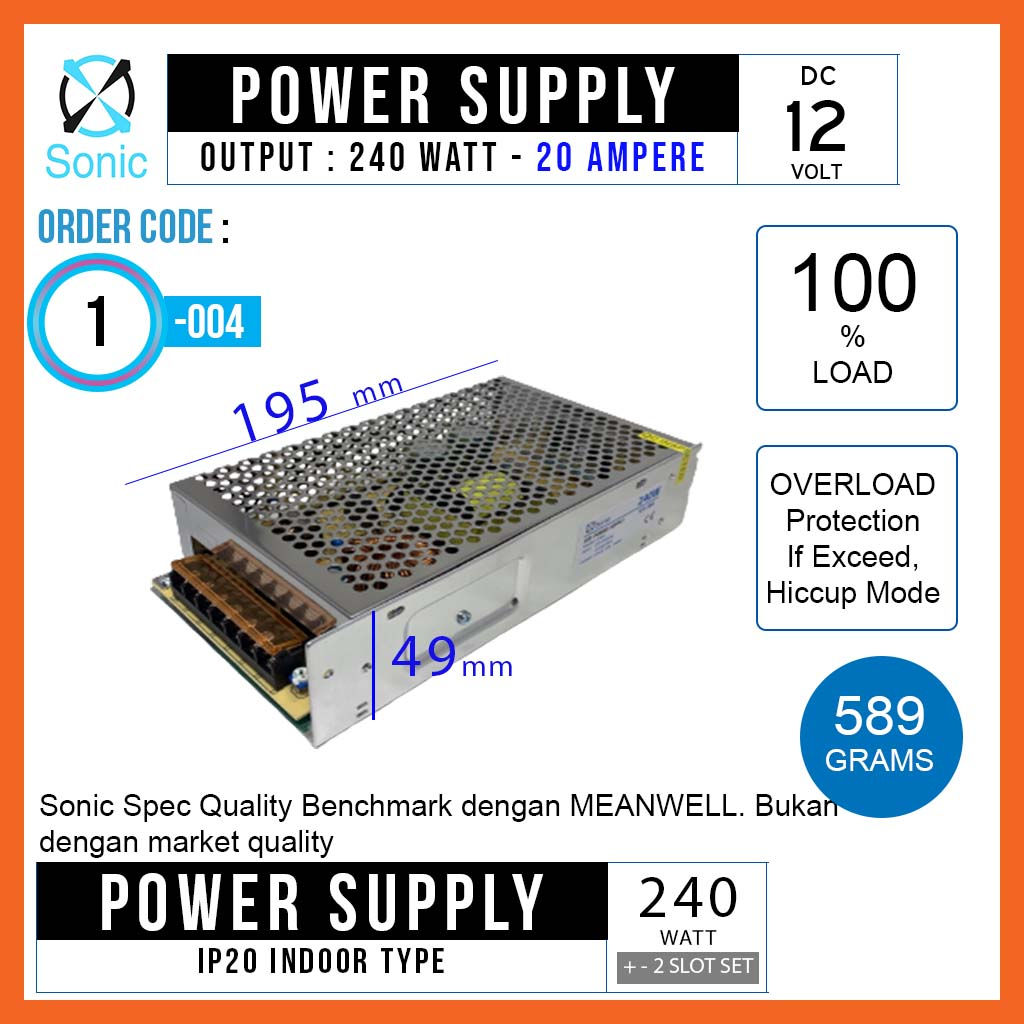

SONIC Power Supply Indoor DC12Volt 20 Ampere 240 Watt

Digunakan untuk merubah tegangan 220V AC menjadi 12V DC. Beberapa contoh barang yang menggunakan 12V DC : Lampu LED, LED Module, Strip LED, CCTV, Lampu Halogen dan sebagainya

FULL LOAD (100% Murni penggunaan Watt)

Fakta parameters :

1. Input Voltage : 170 - 250 V AC
2. Built - in EMI Filter
3. 100% Load test
4. Output Voltage accurate and stable (output over voltage, over current and short circuit protection)
5. Output low ripple and noise
6. MTBF : 50,000 Hours
7. Input Frequency : 50/60 Hz
8. Input Surge : Cold start /230 V AC
9. Dimension : 195 mm (Length) x 110 mm (Width) x 498 mm (Height)
10. Cooling method : Natural Cooling air convection
11. Net weight : 589 gram
12. Ripple Noise : 100 mV
13. 2 Years Warranty
14. Output : DC 12V / 20A - 240 Watt (MURNI)


OUTPUT SPECIFICATION :
Adjustable Voltage : +- 10%
Start up time :  1S (input 230V, Io = 100%)
Keep time :  20mS (input 230V, Io=100%)
Voltage regulation : (Full load) < 0.5%
PROTECTION FUNCTION :
Overload protection : 105%- 150% rated power, automatic recovery
Over-Voltage protection : 105% - 150% of the rated voltage
INSULATION INTENSITY :
Input - output : 1500 VAC/1 min
Input - ground : 1500 VAC/1 min
Input - ground : 500 VAC/1 min
SAFETY STANDARDS :
According with GB4943, UL60950-1, EN60950-1 Standards
EMC STANDARDS :
According with GB9254, EN55022 Class A, EN61347-2-13:2008 Standards
ENVIRONMENTAL :
Working Temperature : -20 ~ 60 C / 20% ~ 90% RH (no frost)
Storage Temperature : 40 ~ 85 C / 10% ~ 95% (no frost)
Height above sea level < 2000 Meters
